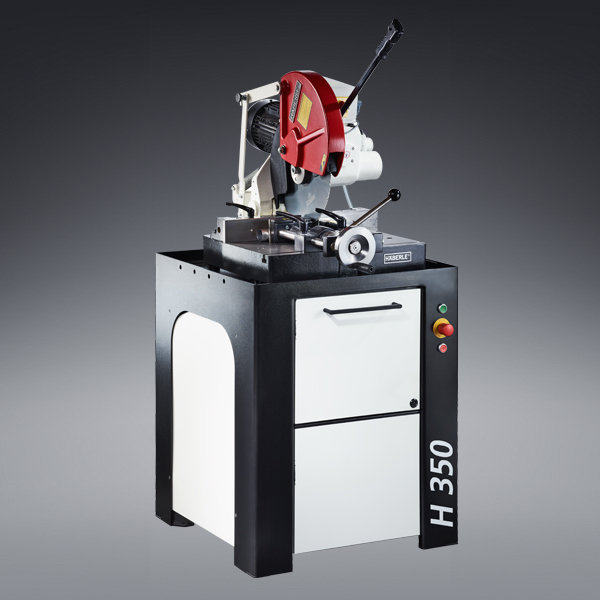

H 350
Strong and compact
The H 350 is a versatile, powerful production saw for tubes, sections and solid bars made of steel, stainless steel and non-ferrous metal designed for mitre cuts on both sides up to 45° for a clamping range up to 185 mm.
Main area of application is the steel and metal construction.
Due to its particularly strong gear box the H 350 is even suitable for the full-time operation.
You are looking for a mitre cut saw for cutting ranges up to 160 mm, then find out about the H 450!
Advantages
- Powerful machine with machine foot
- Large, stable, even machine table
- T-slot table allows variable mounting of the clamping vice
- Clamping range up to 185 mm
- Cooling system with diaphragm pump, water tank in the foot, extendable base
- Longest saw blade lifetimes
- No backlash
Specifications
Technical Specifications
- Saw blade Ø: HSS 350 x 40mm
- Clamping device: Hand-operated clamping vice or pneumatic clamping system with 2 clamping cylinders
- Additional clamping arm: On request
- 2nd manual clamping vice: On request
- Mitre: 45° – 0° – 45°
- Three-phase current : 1.85 / 2.50 kW
- Saw blade speed: 44 / 88 r.p.m.
- Minimum lubrication: On request cutting oil lubrication or spray system
- Water cooling: As standard
- Underframe: Machine foot – On request with door
Workpiece data
- Materials: Steel, stainless steel, non-ferrous metal
- Round tube Ø, 90°: 120mm
- Solid bar Ø, 90°: 60mm
- Square tube, 90°: 105x105mm
- Rectangular tube, 90°: 180x60mm
- Round tube Ø, 45°: 120mm
- Solid bar Ø, 45°: 50mm
- Square tube, 45°: 95x95mm
- Rectangular tube, 45°: 130x70mm
All steel saws are also available with reduced speeds
Peripherals
Feeding system – Roller conveyors of 1 up to 6 m
Measuring system – Length stops for measuring lengths of 500 up to 6,000 mm
