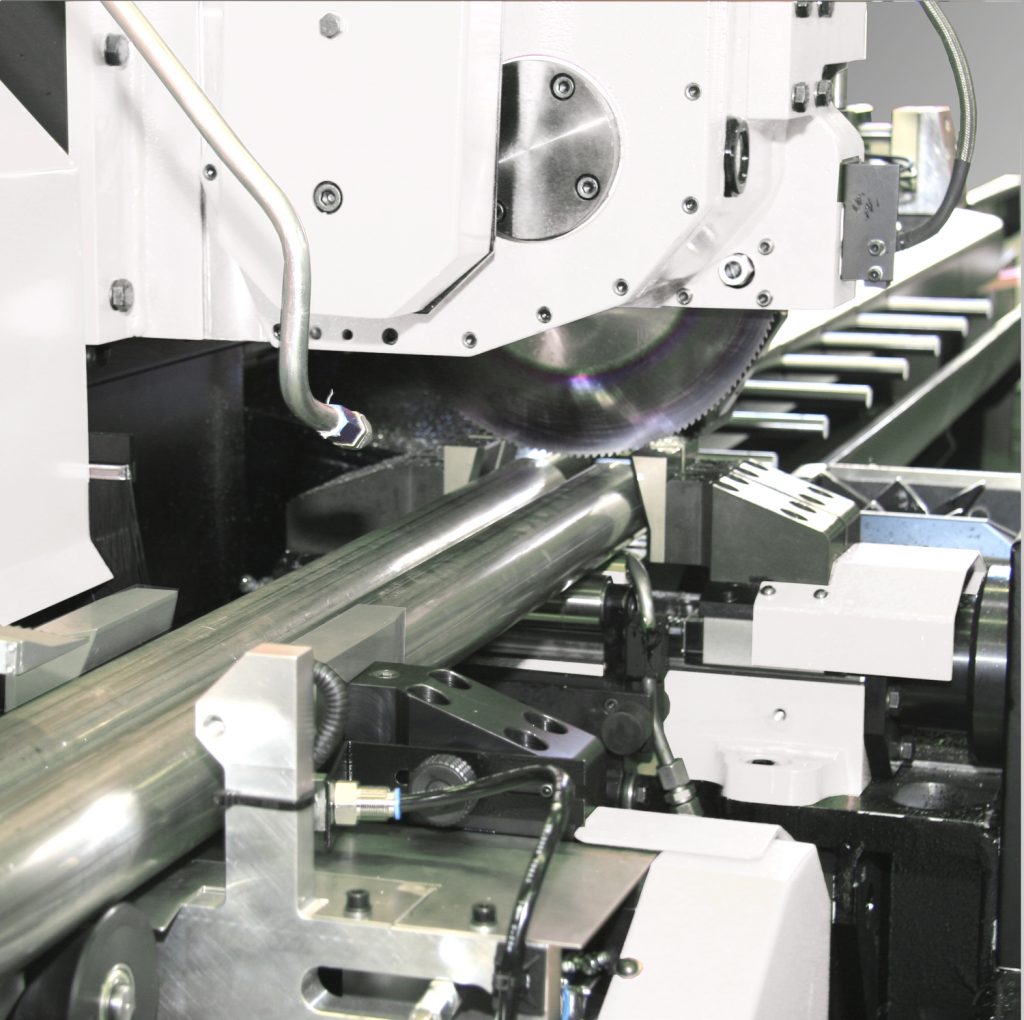

RASACUT MC

High Performance Saws for High Volume Cutting

RASACUT MC

Is the performance of our universal single-cut saws inadequate for your needs? You need even greater ouptut? Then our RASACUT MC is exactly the right saw for you!

The RASACUT MC is optimally suited for a variety of applications in the automotive, steel trade, furniture and scaffolding industries. Thanks to high output, costs per piece are drastically reduced. Added to this are very high cut quality, rapid change-over for short auxilary process times as well as linear saw geometry for a short cutting path.

Thanks to its unbelievably robust construction,the RASACUT MC can be used in a steel works as well as in CNC-sawing and is suitable for three-shift operation.

Operator instructions are provided primarily through pictogrammes and available in nearly all national languages. Control thus demands no CNC-skills from the operator to set the parameters.

Advantages

Your time advantages:

  • Precise separation, automatic layer formation and rapid feed of output lengths parallel to the cutting process.
  • Gripper feed with rapid linear drive; no re-positioning of grippers along fixed length, thus reduced travel time.
  • Easily accessible saw blade, replacement in about 1 minute.
  • Quick tool switching for short auxiliary process times, linear saw geometry for short cutting paths.
  • Automatic reloading of new bar while the previous bar is being machined



Your quality advantages:

  • Saw cut runs linear from top to bottom; this results in shorter cutting times
  • Extremely durable, long-lived saw drive, nearly free of play, optimal for use with carbide-coated saw blades
  • Aircooler assures even cooling using compressed air for clean work pieces, high saw blade endurance and better cut quality
  • Fully automatic tension fed NC-vice, exact centric tension under the central axis of the saw blade



Your cost advantages:

  • High output, resulting in low cost per piece
  • Life-time play free saw forward feed, resulting in higher saw blade durability
  • Suitable for three shift operation
  • Minimal quantity lubrication provides for optimal lubrication, low operating and disposal costs
  • No manual set-up for vice

MOBILE DEMONSTRATION SERVICE

Nothing’s more convincing than first-hand experience. We will gladly allow you to test whether our deburring systems are suitable for your parts – free of charge and non-binding. Not only here on site in Lüdenscheid but also at your factory site.

That’s precisely why we developed our mobile demonstration service, which will come to you. On board you will find brushes and deburring machines, which you can then test on your parts.

Schedule your appointment now by calling 01952 585183 or filling out the form below

    Specifications

    Technical Specifications

    [Cutting Speed: continuous 30 to 250 m/min.
    Saw Blade Diameter: 315 mm
    Saw Motor: 7.5 kW
    Work Piece Positioning: Gripper feed
    Bar section: > 20 mm
    Remnant: > 70 mm



    Workpiece data

    Work materials: Steel, stainless steel, non-ferrous metals
    Round tube, single cut: Ø 10 to 90 mm
    Round tube, single cut: Ø 10 to 60 mm
    Wall thickness: 1 to 5 mm
    Input lengths 6,000 to 12,000 mm
    Fixed lengths: 30 to 150/2,000//3,000 mm
    Other dimensions on request
